Filters

Filters /filters:NAME(ARGS):NAME(ARGS):.../ is a pipeline of image operations that will be sequentially applied to the image. Examples:

/filters:fill(white):format(jpeg)/
/filters:hue(290):saturation(100):fill(yellow):format(jpeg):quality(80)/
/filters:fill(white):watermark(raw.githubusercontent.com/cshum/imagor/master/testdata/gopher-front.png,repeat,bottom,10):format(jpeg)/

Filters are grouped into:

Processing Filters​

background_color(color)​

Sets the background color of a transparent image.

  • color — the color name or hexadecimal rgb expression without the # character

blur(sigma)​

Applies gaussian blur to the image.

  • sigma — blur sigma value
blur(5)

brightness(amount)​

Increases or decreases the image brightness.

  • amount — -100 to 100, the amount in % to increase or decrease the image brightness
brightness(-50)brightness(0)brightness(50)

contrast(amount)​

Increases or decreases the image contrast.

  • amount — -100 to 100, the amount in % to increase or decrease the image contrast

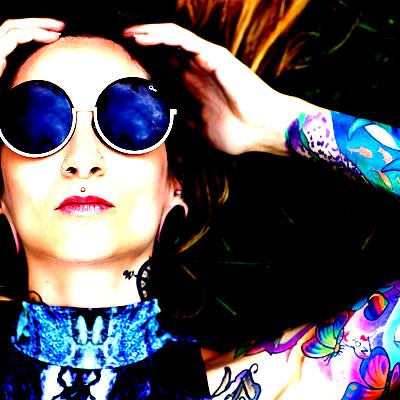

contrast(-50)contrast(0)contrast(50)

crop(left,top,width,height)​

Crops the image after resizing.

  • Absolute pixels: crop(10,20,200,150) — crop 200x150 box starting at (10,20)
  • Relative (0.0–1.0): crop(0.1,0.1,0.8,0.8) — crop using percentages

draw_detections()​

Draws color-coded bounding boxes on detected regions. Each class name is automatically assigned a distinct colour via hash-based palette. For use with detection plugins such as imagorface. No-op when no Detector is configured.

dpi(num)​

Specifies the DPI to render at for PDF and SVG.

fill(color)​

Fills the missing area or transparent image with the specified color. Commonly used with fit-in to fill the letterboxed areas.

  • color — color name or hexadecimal rgb expression without the # character
    • blur — missing parts are filled with a blurred original image
    • auto — the average color of the image will be used as the filling color
    • none — the filling becomes fully transparent

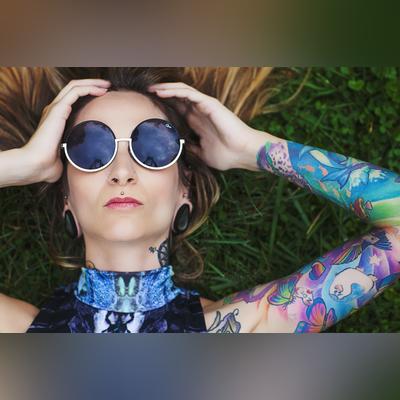

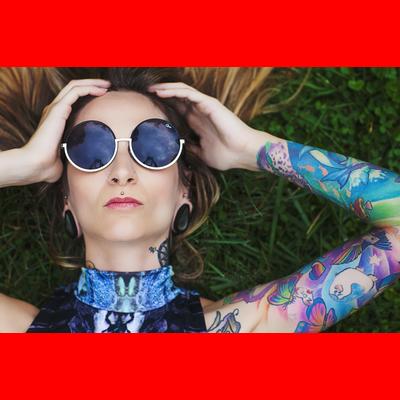

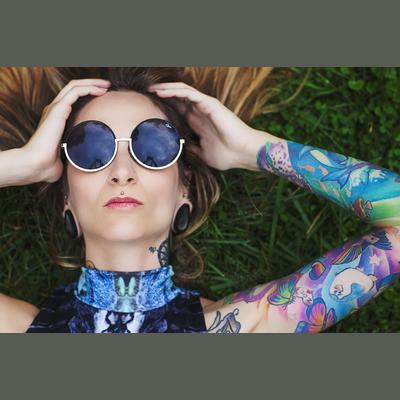

fill(auto)fill(red)fill(blur)

focal(AxB:CxD) or focal(X,Y)​

Adds a focal region or focal point for custom transformations.

  • Coordinated by a region of left-top point AxB and right-bottom point CxD, or a point X,Y.
  • Also accepts float values between 0 and 1 that represent a percentage of image dimensions.

format(format)​

Specifies the output format of the image.

  • format — accepts jpeg, png, gif, webp, avif, jxl, tiff, jp2

grayscale()​

Changes the image to grayscale.

grayscale()

hue(angle)​

Increases or decreases the image hue.

  • angle — the angle in degrees to increase or decrease the hue rotation

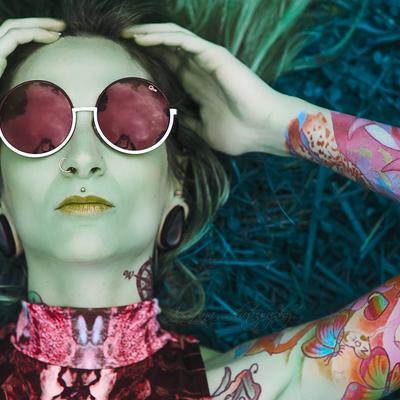

hue(90)

image(imagorpath, x, y[, alpha[, blend_mode]])​

Composites a processed image onto the current image with full imagor transformation support, enabling recursive image composition.

  • imagorpath — an imagor path with transformations e.g. /200x200/filters:grayscale()/photo.jpg
    • The nested path supports all imagor operations: resizing, cropping, filters, etc.
    • Enables recursive nesting — images can load other processed images
    • Use full (or f) in the WxH dimension segment to inherit the parent image's width or height. full means the full parent dimension; full-NNN means the parent dimension minus NNN pixels. Examples:
      • fullxfull/overlay.png (or fxf) — overlay fills the parent canvas exactly
      • fit-in/full-20xfull-20/overlay.png (or fit-in/f-20xf-20) — overlay fits within the parent canvas with a 20px inset on each side
      • fullx200/banner.png — overlay inherits parent width, fixed 200px height
  • x — horizontal position (defaults to 0 if not specified):
    • Positive number indicates position from the left, negative from the right
    • Number followed by p e.g. 20p means percentage of image width
    • left or l, right or r, center for alignment, optionally with pixel offset e.g. left-20, r-10
    • repeat to tile horizontally
    • Float between 0–1 represents percentage e.g. 0.5 for center
  • y — vertical position (defaults to 0 if not specified):
    • Positive number indicates position from the top, negative from the bottom
    • Number followed by p e.g. 20p means percentage of image height
    • top or t, bottom or b, center for alignment, optionally with pixel offset e.g. top-10, b-20
    • repeat to tile vertically
    • Float between 0–1 represents percentage e.g. 0.5 for center
  • alpha — transparency level, 0 (fully opaque) to 100 (fully transparent)
  • blend_mode — compositing blend mode, defaults to normal. Supported modes: normal, multiply, screen, overlay, darken, lighten, color-dodge, color-burn, hard-light, soft-light, difference, exclusion, add, mask, mask-out

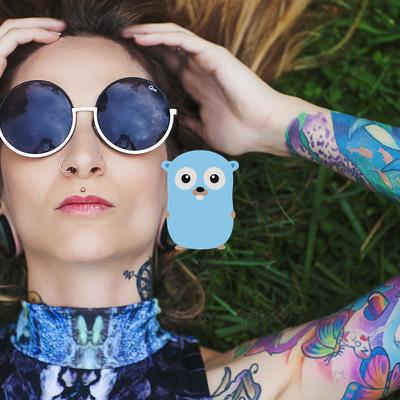

image(/fit-in/100x100/IMAGE,center,center)image(/fit-in/100x100/IMAGE,center,center,50)Recursive: image(filters:image(…)/OUTER,10,10)

max_bytes(amount)​

Automatically degrades the quality of the image until the image is under the specified amount of bytes.

max_frames(n)​

Limits the maximum number of animation frames n to be loaded.

no_upscale()​

Prevents the image from being upscaled beyond its original dimensions.

orient(angle)​

Rotates the image before resizing and cropping, according to the angle value.

  • angle — accepts 0, 90, 180, 270

page(num)​

Specifies the page number for PDF, or frame number for an animated image. Starts from 1.

pixelate(block_size)​

Applies a pixelate effect to the whole image by downscaling to 1/block_size then upscaling back with nearest-neighbour interpolation.

  • block_size — pixel block size in pixels, defaults to 10
pixelate(10)

proportion(percentage)​

Scales the image to the specified proportion percentage of the image dimensions.

quality(amount)​

Changes the overall quality of the image. Does nothing for PNG.

  • amount — 0 to 100, the quality level in %
quality(80)quality(5)

redact([mode[, strength]])​

Obscures all detected regions for privacy/anonymisation (e.g. GDPR face blurring, legal document redaction). Requires a detection plugin such as imagorface. No-op when no Detector is configured or no regions are detected. Skips animated images.

  • mode — blur (default), pixelate, or any color name/hex for solid fill (e.g. black, white, ff0000)
  • strength — blur sigma (default 15) or pixelate block size in pixels (default 10). Not used for solid color mode.

Examples: redact(), redact(blur,20), redact(pixelate), redact(pixelate,15), redact(black), redact(white), redact(ff0000)

redact_oval([mode[, strength]])​

Identical to redact but applies an elliptical mask to each region, producing a rounded/oval redaction shape. This is the most natural shape for face anonymisation as it closely follows the contour of a face. Same arguments and defaults as redact. Requires a detection plugin such as imagorface.

Examples: redact_oval(), redact_oval(blur,20), redact_oval(pixelate), redact_oval(pixelate,15), redact_oval(black), redact_oval(white), redact_oval(ff0000)

rgb(r,g,b)​

Amount of color in each of the RGB channels in %. Can range from -100 to 100.

rgb(60,-30,-30)

rotate(angle)​

Rotates the given image according to the angle value.

  • angle — accepts 0, 90, 180, 270
rotate(90)

round_corner(rx [, ry [, color]])​

Adds rounded corners to the image with the specified color as background.

  • rx, ry — amount of pixels to use as radius. ry = rx if ry is not provided
  • color — the color name or hexadecimal rgb expression without the # character
round_corner(50)

saturation(amount)​

Increases or decreases the image saturation.

  • amount — -100 to 100, the amount in % to increase or decrease the image saturation
saturation(-80)saturation(0)saturation(100)

sharpen(sigma)​

Sharpens the image.

  • sigma — sharpening sigma value
sharpen(3)

strip_exif()​

Removes Exif metadata from the resulting image.

strip_icc()​

Removes ICC profile information from the resulting image. The image is first converted to sRGB color space to preserve correct colors before the profile is removed.

text(text, x, y[, font[, color[, alpha[, blend_mode[, width[, align[, justify[, wrap[, spacing[, dpi]]]]]]]]]])​

Renders a text overlay onto the image with full multi-line and Pango font support.

  • text — the text to render. Supports URL query-encoding and b64: prefix for base64url encoding to safely pass arbitrary unicode or multi-word strings.
  • font — Pango font description with hyphens as space separators, e.g. sans-bold-24 for sans bold 24, monospace-18 for monospace 18. Font size is in points; at the default 72 DPI, 1pt = 1px.
  • x — horizontal position:
    • Positive number indicates position from the left, negative from the right
    • Number followed by p e.g. 20p means percentage of image width
    • left or l, right or r, center for alignment, optionally with pixel offset e.g. left-20, r-10
    • Float between 0–1 represents percentage e.g. 0.5 for center
  • y — vertical position:
    • Positive number indicates position from the top, negative from the bottom
    • Number followed by p e.g. 20p means percentage of image height
    • top or t, bottom or b, center for alignment, optionally with pixel offset e.g. top-10, b-20
    • Float between 0–1 represents percentage e.g. 0.5 for center
  • color — color name or hexadecimal rgb expression without the # character, defaults to black
  • alpha — transparency, 0 (fully opaque) to 100 (fully transparent), defaults to 0
  • blend_mode — compositing blend mode, defaults to normal. Supported modes: normal, multiply, screen, overlay, darken, lighten, color-dodge, color-burn, hard-light, soft-light, difference, exclusion, add, mask, mask-out
  • width — wrap width. Text wraps when a line exceeds this width. Supports the same conventions as image dimensions:
    • Plain integer for pixel count, e.g. 300
    • Number followed by p for percentage of canvas width, e.g. 80p
    • Float between 0–1 as fraction of canvas width, e.g. 0.75
    • f or full for full canvas width; f-N / full-N for canvas width minus N pixels
    • 0 or omitted means unconstrained (Pango wraps only on explicit newlines)
  • align — horizontal alignment of lines within the text box: low (default, left), centre / center, high / right
  • justify — justify text: true or 1
  • wrap — line wrapping mode: word (default), char, wordchar, none
  • spacing — additional line spacing in pixels
  • dpi — render DPI, defaults to 72 (where 1pt = 1px)

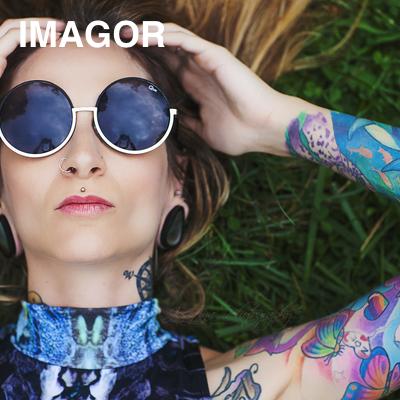

text(IMAGOR,20,20,sans-bold-36,white,0)text(b64:SGVsbG8gV29ybGQgZnJvbSBpbWFnb3I,-20,20,sans-24,yellow,0,,180,high)

to_colorspace(profile)​

Converts the image to the specified ICC color profile.

  • profile — the target color profile, defaults to srgb if not specified. Common values: srgb, p3, cmyk

upscale()​

Enables upscaling for fit-in and adaptive-fit-in modes.

watermark(image, x, y, alpha [, w_ratio [, h_ratio]])​

Adds a watermark to the image. It can be positioned inside the image with the alpha channel specified and optionally resized based on the image size by specifying the ratio.

  • image — watermark image URI, using the same image loader configured for imagor. Use b64: prefix to encode image URLs with special characters as base64url.
  • x — horizontal position:
    • Positive number indicates position from the left, negative from the right
    • Number followed by p e.g. 20p means percentage of image width
    • left, right, center — positioned left, right or centered respectively
    • repeat — the watermark will be repeated horizontally
  • y — vertical position:
    • Positive number indicates position from the top, negative from the bottom
    • Number followed by p e.g. 20p means percentage of image height
    • top, bottom, center — positioned top, bottom or centered respectively
    • repeat — the watermark will be repeated vertically
  • alpha — watermark image transparency, a number between 0 (fully opaque) and 100 (fully transparent)
  • w_ratio — percentage of the width of the image the watermark should fit-in
  • h_ratio — percentage of the height of the image the watermark should fit-in

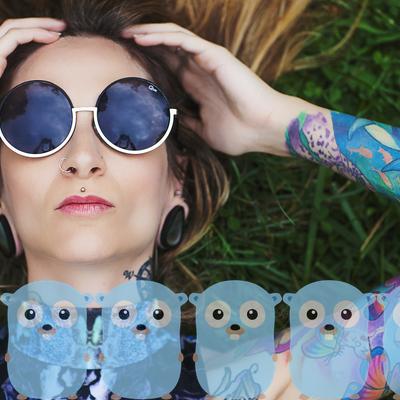

watermark(IMAGE,-20,-20,0,30,30)watermark(IMAGE,repeat,bottom,30,30,30)

Utility Filters​

These filters do not manipulate images but provide useful utilities to the imagor pipeline:

attachment(filename)​

Returns the image as an attachment in the Content-Disposition header. The browser will open a "Save as" dialog with filename. When filename is not specified, imagor will get the filename from the image source.

expire(timestamp)​

Adds expiration time to the content. timestamp is the unix milliseconds timestamp, e.g. if content is valid for 30s then timestamp would be Date.now() + 30*1000 in JavaScript.

preview()​

Skips the result storage even if result storage is enabled, and opts the request into the in-memory cache when configured. Useful for preview contexts where the same source image is served at multiple transformations.

raw()​

Responds with a raw unprocessed and unchecked source image. Image still loads from loader and storage but skips the result storage.

Metadata Filters​

These filters add computed values to the metadata response. They require the full image to be downloaded and decoded.

See Metadata & Exif for full documentation and examples.
