imagorface

imagorface brings fast, on-the-fly face detection to imagor. Built on pigo PICO cascade classifier, it detects faces in images and wires into the imagor pipeline for face-centred smart crop and privacy redaction — all self-hosted with no third-party API calls.

• Face-centred smart crop — detected faces anchor the smart crop, no more headless bodies
• Privacy redaction — blur, pixelate, or solid-fill detected faces for content moderation
• Metadata API — detected face regions exposed through imagor /meta endpoint
• Self-hosted — no third-party API, no per-call cost, no data egress

imagorface implements the imagor Detector interface, integrating with imagor loader, storage and result storage, and supporting all image endpoint operations and filters out of the box.

info

GitHub: cshum/imagorface
Docker: shumc/imagorface

Quick Start

docker run -p 8000:8000 shumc/imagorface -imagor-unsafe -face-detector

Original image:

https://raw.githubusercontent.com/cshum/imagorface/refs/heads/main/testdata/people.jpg

Try these URLs:

http://localhost:8000/unsafe/500x250/smart/https://raw.githubusercontent.com/cshum/imagorface/refs/heads/main/testdata/people.jpg
http://localhost:8000/unsafe/500x250/smart/filters:draw_detections()/https://raw.githubusercontent.com/cshum/imagorface/refs/heads/main/testdata/people.jpg
http://localhost:8000/unsafe/500x250/smart/filters:redact()/https://raw.githubusercontent.com/cshum/imagorface/refs/heads/main/testdata/people.jpg
http://localhost:8000/unsafe/500x250/smart/filters:redact(pixelate)/https://raw.githubusercontent.com/cshum/imagorface/refs/heads/main/testdata/people.jpg
http://localhost:8000/unsafe/500x250/smart/filters:redact(black)/https://raw.githubusercontent.com/cshum/imagorface/refs/heads/main/testdata/people.jpg
http://localhost:8000/unsafe/500x250/smart/filters:redact_oval()/https://raw.githubusercontent.com/cshum/imagorface/refs/heads/main/testdata/people.jpg

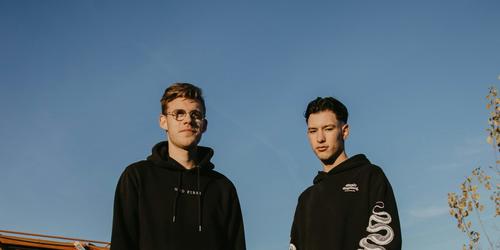

500x250/smart	500x250/smart/filters:draw_detections()
filters:redact()	filters:redact(pixelate)
filters:redact(black)	filters:redact_oval()

Smart Crop

When -face-detector is enabled, imagorface runs face detection before the crop step. If one or more faces are detected, their bounding boxes become the focal region for smart crop, replacing the default libvips attention heuristic. When no faces are found, imagor falls back to standard attention-based crop.

Face detection runs on a downscaled greyscale probe derived from raw decoded pixels, keeping overhead minimal.

smart	smart/filters:draw_detections()

---

Filters

imagorface adds the following filters to the imagor pipeline. See Filters for the full filter reference.

draw_detections()

Draws colour-coded bounding boxes for all detected face regions. Each class is automatically assigned a distinct colour via hash-based palette — useful for visual inspection and debugging.

http://localhost:8000/unsafe/500x250/smart/filters:draw_detections()/IMAGE

redact([mode[, strength]])

Obscures all detected face regions for privacy and anonymisation (GDPR face blurring, legal document redaction). No-op when no faces are detected. Does not apply to animated images.

• mode — blur (default), pixelate, or any colour name/hex for solid fill (e.g. black, white, ff0000)
• strength — blur sigma (default 15) or pixelate block size in pixels (default 10). Not used for solid colour mode.

http://localhost:8000/unsafe/500x250/smart/filters:redact()/IMAGE                 # blur (default)
http://localhost:8000/unsafe/500x250/smart/filters:redact(pixelate)/IMAGE         # pixelate
http://localhost:8000/unsafe/500x250/smart/filters:redact(blur,25)/IMAGE          # blur with custom strength
http://localhost:8000/unsafe/500x250/smart/filters:redact(black)/IMAGE            # solid black fill
http://localhost:8000/unsafe/500x250/smart/filters:redact(white)/IMAGE            # solid white fill
http://localhost:8000/unsafe/500x250/smart/filters:redact(ff0000)/IMAGE           # custom colour fill

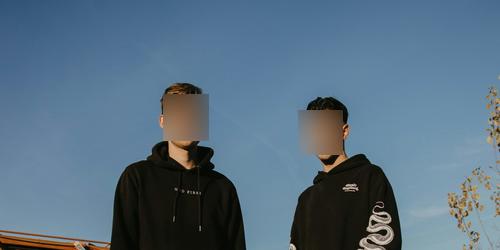

redact() — blur	redact(pixelate)

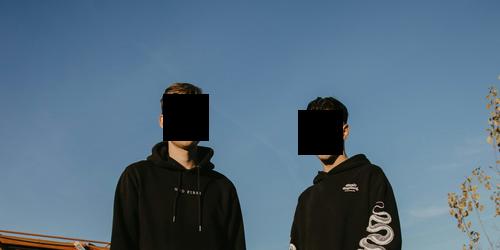

redact(black)	redact_oval() — oval blur

redact_oval([mode[, strength]])

Identical to redact() but applies an elliptical mask to each region, producing a rounded redaction shape that closely follows the natural contour of a face. Same arguments and defaults as redact().

http://localhost:8000/unsafe/500x250/smart/filters:redact_oval()/IMAGE            # oval blur (default)
http://localhost:8000/unsafe/500x250/smart/filters:redact_oval(pixelate)/IMAGE    # oval pixelate
http://localhost:8000/unsafe/500x250/smart/filters:redact_oval(black)/IMAGE       # oval solid black

---

Metadata

imagorface exposes detected face regions through imagor's metadata endpoint. Each region is returned in absolute pixel coordinates relative to the output image, along with a detection score and label.

Detection only runs when the URL semantically requests it — via smart, draw_detections(), or redact().

Add /meta right after the URL signature hash:

http://localhost:8000/unsafe/meta/500x250/smart/filters:draw_detections()/IMAGE
http://localhost:8000/unsafe/meta/500x250/smart/IMAGE

Response includes a detected_regions array:

{
  "format": "jpeg",
  "content_type": "image/jpeg",
  "width": 500,
  "height": 250,
  "detected_regions": [
    { "left": 120, "top": 45, "right": 280, "bottom": 205, "score": 12.34, "name": "face" },
    { "left": 350, "top": 60, "right": 490, "bottom": 200, "score": 9.10,  "name": "face" }
  ]
}

score is the raw pigo detection quality (higher = more confident). name is "face" for all regions.

---

Face Detect Cache

imagorface maintains an in-memory cache of detection results keyed by source image path, avoiding repeated pigo runs for the same source. Backed by ristretto with LRU eviction.

FACE_DETECTOR_CACHE_SIZE=500  # max cached entries (one per source image path). 0 = disabled (default)
FACE_DETECTOR_CACHE_TTL=1h    # cache TTL. 0 = no expiry (LRU eviction only)

Enable when the same source images are frequently requested at different crop sizes. Set FACE_DETECTOR_CACHE_TTL if source images may change at the same path. Leave disabled for highly varied or user-supplied image paths.

---

Docker Compose Example

version: "3"
services:
  imagor:
    image: shumc/imagorface:latest
    environment:
      PORT: 8000
      IMAGOR_SECRET: mysecret

      FACE_DETECTOR: 1                  # enable face detection for smart crop
      FACE_DETECTOR_MIN_SIZE: 20        # min face size in pixels on probe image
      FACE_DETECTOR_MIN_QUALITY: 5.0    # detection quality threshold
      FACE_DETECTOR_CACHE_SIZE: 500     # cache detection results per source image
      FACE_DETECTOR_CACHE_TTL: 1h       # cache TTL (0 = no expiry)
    ports:
      - "8000:8000"

Configuration

Configuration options specific to imagorface. See Configuration for all imagor options. The -vips-detector-probe-size option (default 400) controls the maximum dimension of the downscaled probe image passed to any detector.

  -face-detector
        enable face detection for smart crop
  -face-detector-min-size int
        minimum face size in pixels on the probe image (default 20)
  -face-detector-max-size int
        maximum face size in pixels on the probe image (default 400)
  -face-detector-min-quality float
        minimum detection quality threshold; lower = more candidates, higher = fewer false positives (default 5.0)
  -face-detector-iou-threshold float
        intersection-over-union threshold for non-maxima suppression (default 0.2)
  -face-detector-cache-size int
        face detect cache size in number of entries (one per unique source image path). 0 = disabled (default)
  -face-detector-cache-ttl duration
        face detect cache TTL. 0 = no expiry (default)
