imagorvideo

imagorvideo brings video thumbnail capability to imagor through ffmpeg C bindings. It extracts video thumbnails by selecting the best frame using RMSE histogram analysis, then passes the frame through the full imagor pipeline for cropping, resizing and filters.

imagorvideo implements ffmpeg read and seek I/O callbacks with imagor loader, storage and result storage, supporting HTTP(s), File System, AWS S3 and Google Cloud Storage out of the box. For non-seekable sources such as HTTP and S3, imagorvideo simulates seek using memory or temp file buffer.

info

GitHub: cshum/imagorvideo
Docker: shumc/imagorvideo

Quick Start

docker run -p 8000:8000 shumc/imagorvideo -imagor-unsafe

With a sample video:

https://commondatastorage.googleapis.com/gtv-videos-bucket/sample/BigBuckBunny.mp4

Try these thumbnail URLs:

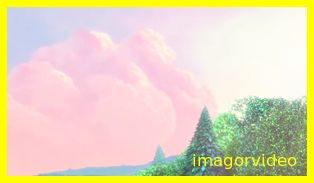

http://localhost:8000/unsafe/300x0/7x7/filters:label(imagorvideo,-10,-7,15,yellow):fill(yellow)/https://commondatastorage.googleapis.com/gtv-videos-bucket/sample/BigBuckBunny.mp4

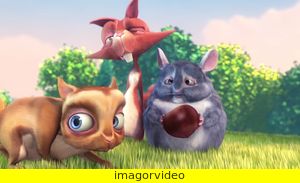

http://localhost:8000/unsafe/300x0/0x0:0x14/filters:frame(1m59s):fill(yellow):label(imagorvideo,center,bottom,12,black,20)/https://commondatastorage.googleapis.com/gtv-videos-bucket/sample/BigBuckBunny.mp4

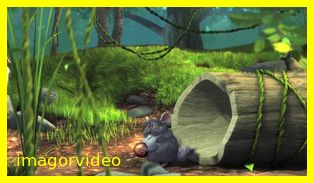

http://localhost:8000/unsafe/300x0/7x7/filters:frame(0.6):label(imagorvideo,10,-7,15,yellow):fill(yellow)/https://commondatastorage.googleapis.com/gtv-videos-bucket/sample/BigBuckBunny.mp4

imagorvideo streams a limited number of frames from the video, calculates the histogram of each frame, and selects the best one based on Root Mean Square Error (RMSE). This skips black frames that commonly occur at the start of videos. The selected frame is converted to RGB and forwarded to the imagor libvips processor.

Filters

imagorvideo adds the following filters, usable alongside all standard imagor filters:

frame(n)

Selects the precise frame at the specified position or time — bypasses automatic best-frame selection.

• Float 0.0–1.0 — position index of the video (e.g. frame(0.5))
• Time duration — elapsed time from start (e.g. frame(5m1s), frame(200s))

seek(n)

Seeks to the approximate position or time, then performs automatic best-frame selection around that point using RMSE. More forgiving than frame() when the target position may be a black frame.

• Float 0.0–1.0 — position index (e.g. seek(0.5))
• Time duration — elapsed time from start (e.g. seek(5m1s), seek(200s))

frame(n) vs seek(n)

frame(n) gives the precise frame at the specified time, but that frame may be black:

http://localhost:8000/unsafe/filters:frame(5m)/https://commondatastorage.googleapis.com/gtv-videos-bucket/sample/BigBuckBunny.mp4

seek(n) seeks to the key frame before the target time, then applies best-frame selection — producing a useful image even when the exact frame is dark:

http://localhost:8000/unsafe/filters:seek(5m)/https://commondatastorage.googleapis.com/gtv-videos-bucket/sample/BigBuckBunny.mp4

max_frames(n)

Restricts the maximum number of frames sampled for best-frame selection. Smaller values produce faster processing at the cost of selection quality.

---

Metadata

imagorvideo provides a metadata endpoint that extracts video metadata — format, duration, FPS, dimensions — without extracting frame data.

Add /meta right after the URL signature hash:

http://localhost:8000/unsafe/meta/https://test-videos.co.uk/vids/bigbuckbunny/mp4/h264/1080/Big_Buck_Bunny_1080_10s_30MB.mp4

{
  "format": "mp4",
  "content_type": "video/mp4",
  "orientation": 1,
  "duration": 10000,
  "width": 1920,
  "height": 1080,
  "title": "Big Buck Bunny, Sunflower version",
  "artist": "Blender Foundation 2008, Janus Bager Kristensen 2013",
  "fps": 30,
  "has_video": true,
  "has_audio": false
}

---

Docker Compose Example

version: "3"
services:
  imagor:
    image: shumc/imagorvideo:latest
    environment:
      PORT: 8000
      IMAGOR_SECRET: mysecret

      FFMPEG_FALLBACK_IMAGE: "path/to/fallback.jpg" # optional - fallback image on processing error
    ports:
      - "8000:8000"

Configuration

Configuration options specific to imagorvideo. See Configuration for all imagor options.

  -ffmpeg-fallback-image string
        FFmpeg fallback image on processing error. Supports image path enabled by loaders or storages
